Brine Chillers

Brine Chillers

200000.00 - 2000000.00 INR/Piece
Get a Price/Quote

Product Details:

  • Application Industrial Process Cooling, Chemical Plants, Pharmaceutical, Beverage, Dairy, Ice Cream Industries
  • Air Flow 1000-10000 CFM
  • Refrigerating Capacity 5 TR to 150 TR
  • Material MS Powder Coated / Stainless Steel Body
  • Motor Flange Mounted Type, TEFC
  • Condition New
  • Type Air Cooled / Water Cooled
  • Click to View more
Request to Call Back Send Inquiry
X

Brine Chillers Price And Quantity

  • 200000.00 - 2000000.00 INR/Piece
  • 1 Piece
  • 2
  • Android
  • AAA
  • Yes
  • 178
  • Built-in WiFi, Screen Mirroring
  • 60 Hz

Brine Chillers Product Specifications

  • 0.5 HP to 10 HP, Heavy Duty
  • Customized as per Requirement
  • 2-30 m/hr
  • 380V / 415V / 440V
  • 1000-10000 CFM
  • Direct Cooling / Indirect Cooling with Glycol / Brine
  • Industrial Process Cooling, Chemical Plants, Pharmaceutical, Beverage, Dairy, Ice Cream Industries
  • Copper / Stainless Steel
  • Flange Mounted Type, TEFC
  • Stainless Steel / Brass
  • Air Cooled / Water Cooled
  • New
  • MS Powder Coated / Stainless Steel Body
  • Three Phase, 50 Hz / 60 Hz
  • Hermetically Sealed Reciprocating / Scroll / Screw Compressor
  • 5 TR to 150 TR
  • Low Noise Design
  • 2
  • Android
  • AAA
  • Yes
  • 178
  • Built-in WiFi, Screen Mirroring
  • 60 Hz

Brine Chillers Trade Information

  • 20 Piece Per Week
  • 3 Week
  • Wooden Packing, As per product
  • Australia, North America, Eastern Europe, Middle East, Western Europe, Africa, Central America, South America, Asia
  • All India
  • ISO 9001: 2015

Product Description

There is a choice of screw compressors, including Bitzer, Hanbell and J & E Hall etc. We keep up with semi-hermetic construction options, making our brine chillers maintenance friendly. This screw compressor range is specially designed for low temperature applications. There are internally built oil separation method, discharge port and check valves at suction, as per the standard.


Our brine chillers have innovative design that ensures good product coverage and total temperature uniformity. Also, they are designed for lower operating costs and enhanced system life. Our systems ensure constant temperature performance, from -50 degree C to + 20 degree C. They are used for outdoor installation as well as indoor installation. Our brine chillers are equipped with effective control mechanism that helps in smooth operation even at -25 degree C temperature.

The type of screw compressor we use are either from Bitzer (Germany), Hanbell (Taiwan),or J&E Hall (UK). All these compressors are semi-hermetic in construction, due to which it is maintenance friendly. The screw compressor range we offer is developed especially for low temperature chillers applications and is provided along with an adjustable volume ratio. Besides this, an internally built oil separation system, discharge port and check valves at suction are offered with the OEM equipment as standard part of it. The screw compressor is designed in varied specifications by the respective OEMs mainly for low temperature applications.

HIGH COP/EERis a proficient component of the refrigerant. Thiswater cooledchillers unit always matched with the standard ASHRAE/ANSI 15 Safety Code. As the the condensers are oversized, the productive gathering of the refrigerant solution enables lower IKW contrasted and other accessible brands.

Shell & Tube Evaporatoris fabricated with copper containers of 19 SWG that enables them to withstand even hard water with more than 8 pH value. The copper tubes consist Flamingo licensed star turbulator embeds, which provides turbulence to the refrigerant that courses through the copper tubes. The turbulence Shell & Tube are made of top-notch quality steel and evaporators is made in accordance to ASME Section VIII. The evaporators we provide have an excellent hot has exchange rate.

The gamut is available in a different types of refrigerants that includes R-407c, R-22 (Freon) and R-134a. Both R-134a and R-407c are environment friendly and have non-ozone draining refrigerants.

Ultra Efficient Condensinguses perfectly finned outer copper tubes for increasing the heat transfer surface at higher efficiency in comparison to copper tubes that are not finned. These copper tubes are of 16 SWG and are finned on the outer surface up to 26 fins per inch. The expanding of the machinery is done mechanically via torque controlled machine in this process imported VMC are also implemented.

Economizer For Higher Efficiencyis given as per the refrigerant used and also depends on the desired range of liquid temperature. We provide the economiser as standard part of supply in process chillers that are used for evaporating temperature of 0 degree Celsius or or lower. The sub-cooler helps in increasing the overall capacity of the chiller by upto 10percent and also helps in reducing the overall power consumption, which ultimately increases the overall coefficient of performance (cop).

The varied options for choice of refrigerants comprises R-407C, R-22 (Freon) and R-134a. The R-407C and R-134A are known for their non- ozone depleting and environment friendly refrigerants.

Brine Chillers Features & Benefits :-

  • Compact, robust and energy saving
  • Easy installation, use and maintenance
  • Best adjust-ability to meet cooling demand
  • High thermal efficiency
  • Fast, uniform chilling and high yields
  • Custom design for the best size and configuration

FAQ

1. What is a brine chiller?

Ans - A brine chiller is a type of cooling system that uses a saltwater solution, also known as brine, to transfer heat away from a refrigeration system. This type of chiller can be used to cool a variety of substances, such as food, beverages, and industrial products.

2. How does a brine chiller work?

Ans - A brine chiller works by using a series of pumps to circulate brine through a closed loop system. The brine absorbs heat from the refrigeration system, then passes through a heat exchanger where the heat is transferred to a second fluid. This second fluid then dissipates the heat into the environment.

3. What are the benefits of using a brine chiller?

Ans - Brine chillers are energy efficient and have a higher cooling efficiency compared to traditional methods. They are also well-suited for cooling large systems, as the brine can be circulated over long distances with minimal loss in efficiency.

4. What types of industries can use brine chillers?

Ans - Brine chillers are used in a variety of industries, including food and beverage processing, pharmaceutical production, and chemical manufacturing. They are also used in industrial processes such as metalworking and plastic molding.



Efficient and Versatile Cooling Solutions

Our Brine Chillers deliver precise temperature control using high-performance heat exchangers, making them ideal for demanding industrial applications. The units are designed for easy installation and maintenance, ensuring minimal downtime and maximum operational efficiency across various industries.


Advanced Control and Robust Safety

Equipped with a microprocessor-based digital controller, our chillers offer accurate temperature management and quick fault identification via an intuitive display. Integrated safety features, including pressure switches and overload protection, provide reliable and secure operation in even the most rigorous environments.


Eco-Friendly and Customizable Design

Available with CFC/HCFC free refrigerants, these chillers prioritize environmental safety without compromising performance. Their modular, customizable build with high-density insulation and corrosion-resistant materials ensures long-lasting service and adaptability to specific site and application requirements.

FAQs of Brine Chillers:


Q: How does the microprocessor-based digital controller enhance the operation of these brine chillers?

A: The microprocessor-based digital controller provides precise temperature management and real-time monitoring by displaying parameters and fault indications on the LED/LCD screen. This ensures optimal performance, quick diagnostics, and streamlined adjustments during operation.

Q: What types of applications benefit most from using these brine chillers?

A: These chillers are ideally suited for industrial process cooling in sectors like chemical processing, pharmaceuticals, beverage and dairy production, and ice cream manufacturing, where tight temperature regulation and consistent cooling are critical.

Q: When is it recommended to use shell & tube versus plate type heat exchangers in these chillers?

A: Shell & tube heat exchangers are preferred for handling higher flow rates and applications prone to fouling, while plate type exchangers are optimal for applications demanding compact design and high thermal efficiency.

Q: Where can installation and service support for these chillers be accessed?

A: Installation is made easy with a skid-mounted design, and comprehensive service support is readily available across India (PAN India) to assist with setup, regular maintenance, and troubleshooting.

Q: What is the process for selecting the appropriate refrigerant for my application?

A: The choice of refrigerantR22, R407C, R410A, or R134ais determined based on your process requirements, cooling temperature, environmental considerations, and regulatory compliance. Our team can guide you to select the most suitable and eco-friendly option.

Q: How does the chiller ensure safe and reliable operation over time?

A: The chillers are equipped with robust safety mechanisms including high/low pressure switches, overload and phase failure protection. Additionally, corrosion-resistant stainless steel circulation pumps and high-density insulation extend equipment life and ensure operational reliability.

Q: What are the key benefits of using this chiller with automatic capacity control and advanced insulation?

A: Automatic step or stepless capacity control optimizes energy use by adjusting output to match demand, while high-density PUF or Nitrile Rubber insulation minimizes heat loss, boosting efficiency and reducing operating costs.

Tell us about your requirement
product

Price:

Quantity
Select Unit

  • 50
  • 100
  • 200
  • 250
  • 500
  • 1000+
Additional detail
Mobile number

Email

Other Products in 'Chilling Plants' category

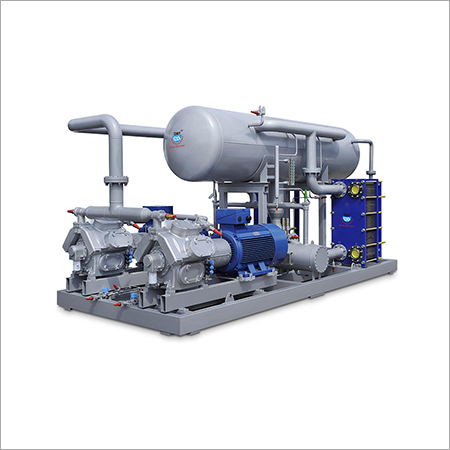

Milk Chilling Plants
