Batching Plant Chiller

Batching Plant Chiller

200000.00 - 2000000.00 INR/Unit
Get a Price/Quote

Product Details:

  • Application Batching Plant Concrete Cooling
  • Refrigerating Capacity 20 TR
  • Motor Energy Efficient Electric Motor
  • Air Flow High Efficiency Fan Assisted
  • Material Mild Steel Powder Coated Body
  • Condition New
  • Type Batching Plant Chiller
  • Click to View more
Request to Call Back Send Inquiry
X

Batching Plant Chiller Price And Quantity

  • 1 Unit
  • 200000.00 - 2000000.00 INR/Unit
  • R407C / R22
  • Overload Relay, HP/LP Switch, Flow Switch
  • 4°C to 15°C Adjustable
  • Air Cooled
  • 5°C to 50°C
  • Shell and Tube Type
  • Automatic Digital Temperature Controller
  • LED Indicator Panel
  • PUF
  • Fixed on Skid Base
  • Approx. 900 kg
  • Easy Maintenance Access

Batching Plant Chiller Product Specifications

  • Batching Plant Chiller
  • Mild Steel Powder Coated Body
  • Energy Efficient Electric Motor
  • 1800mm x 900mm x 1600mm
  • High Efficiency Fan Assisted
  • Copper
  • Brass
  • New
  • Low Noise Operation
  • 3 Phase, 50 Hz
  • 415 V
  • 60 LPM
  • 1.5 HP
  • Water Cooled
  • Hermetically Sealed Reciprocating / Scroll Type
  • Batching Plant Concrete Cooling
  • 20 TR
  • R407C / R22
  • Overload Relay, HP/LP Switch, Flow Switch
  • 4°C to 15°C Adjustable
  • Air Cooled
  • 5°C to 50°C
  • Shell and Tube Type
  • Automatic Digital Temperature Controller
  • LED Indicator Panel
  • PUF
  • Fixed on Skid Base
  • Approx. 900 kg
  • Easy Maintenance Access

Batching Plant Chiller Trade Information

  • 10 Unit Per Week
  • 1 Week
  • Central America, Australia, North America, South America, Western Europe, Middle East, Eastern Europe, Asia, Africa
  • All India

Product Description

Batching chillers, Batching Plant chiller are customized for concrete mixing and cooling applications with 4 Deg C and 1 Deg C chilled water temperatures, as per the process requirement. The chillers are designed to operate at highly dusty batching sites, within extreme weather conditions, working directly under sun and shower. The major components in the refrigeration circuits are chosen or designed as per the available site conditions and utilities.

Batching Plant Chiller Specifications:

  • 105 Kw to 703 Kw, 4 Deg C / 1 Deg C Ice Water
  • R-404 A/R-134 a/R-22 options



FAQ

1. What is a chiller in a batching plant?

Ans - Before being employed in the construction process, concrete and other materials are cooled to a predetermined temperature using a batching plant chiller.

2. What advantages can batching plant chillers offer?

Ans - Concrete can cure more quickly, with better product quality, and at a lower energy cost when it is chilled in a batching plant chiller.

3. How long does a chiller in a batching factory last?

Ans - With the right maintenance, a batching plant chiller should survive for several years.

4. What kind of maintenance is necessary for a chiller in a batching plant?

Ans - A batching plant chiller should undergo routine maintenance that includes monitoring the refrigerant's temperature and pressure, cleaning the condenser and evaporator coils, and checking the electrical connections.

5. Do batching plant chillers need licences to run?

Ans - To use a batching plant chiller may require a permission in some locations. It is crucial to confirm any relevant permitting needs with local authorities.



Efficient Temperature Control

This chiller features an automatic digital temperature controller, allowing accurate adjustment of water temperatures for concrete batching operations. The system maintains optimal cooling levels regardless of varying ambient conditions, ensuring consistent concrete quality.


Advanced Heat Exchange Technology

Utilizing a shell-and-tube type heat exchanger and copper cooling coils, the chiller provides excellent thermal transfer. The air-cooled condenser and high-efficiency fan together help achieve and maintain desired chilled water temperatures for better batching process control.


Safety and Maintenance

Fitted with essential safety devices like overload relay, HP/LP switches, and flow switch, this chiller ensures operational protection. Its skid-mounted design and easy-access panels simplify maintenance, minimizing downtime and supporting seamless operations at your plant.

FAQs of Batching Plant Chiller:


Q: How does the automatic digital temperature controller work in the batching plant chiller?

A: The automatic digital temperature controller continuously monitors and adjusts the chilled water temperature between 4C and 15C, providing precise cooling required for concrete batching. It automatically regulates system operation based on your set parameters.

Q: What is the benefit of using a shell-and-tube heat exchanger in this chiller?

A: The shell-and-tube heat exchanger offers robust thermal efficiency, facilitating effective heat transfer and stable chilled water supply, which is crucial for maintaining concrete quality during batch production processes.

Q: When should the chiller be serviced for optimal performance?

A: Regular maintenance is recommended, typically on a quarterly basis, or as specified in the manufacturers service manual. Easy-access panels allow for quick inspection and servicing to keep the system running reliably.

Q: Where can this batching plant chiller be installed?

A: This chiller is designed for fixed installation on a skid base and is ideal for concrete batching plants, especially in environments where consistent water cooling is necessary for process control and product quality.

Q: What safety features are included to protect the chiller during operation?

A: Key safety devices like overload relay, HP/LP switches, and flow switch safeguard the chiller against electrical and refrigerant-related issues, preventing accidental damage and ensuring safe operation.

Q: How is the chilled water temperature adjusted and displayed?

A: The temperature is set using the automatic digital controller, and real-time system status is conveniently displayed on the LED indicator panel, providing easy monitoring and adjustments by operators.

Q: What are the main benefits of using this chiller for batching plant concrete cooling?

A: This chiller delivers energy-efficient cooling, reliable operation with safety mechanisms, low noise, and easy serviceability, resulting in optimized concrete quality and increased batching plant productivity.

Tell us about your requirement
product

Price:

Quantity
Select Unit

  • 50
  • 100
  • 200
  • 250
  • 500
  • 1000+
Additional detail
Mobile number

Email

Other Products in 'Industrial Chillers' category

Chiller For Electroplating
Send Inquiry
Acid Chillers
Send Inquiry
Water Cooled Chillers
Send Inquiry

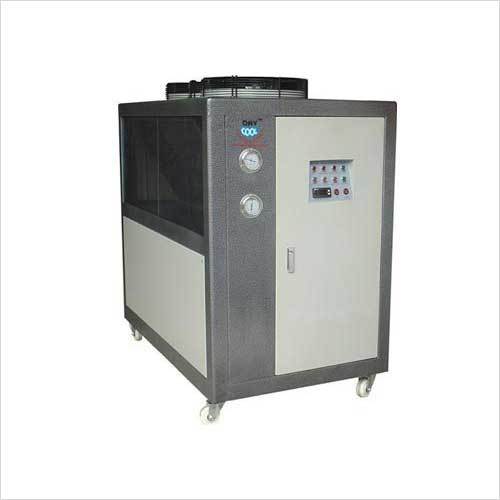

Beverage Chillers (Juice Chillers)
